PECO Approved CT Cabinets

Nav-Tech CT Cabinets approved by PECO. Download spec sheets below or contact us for custom specifications.

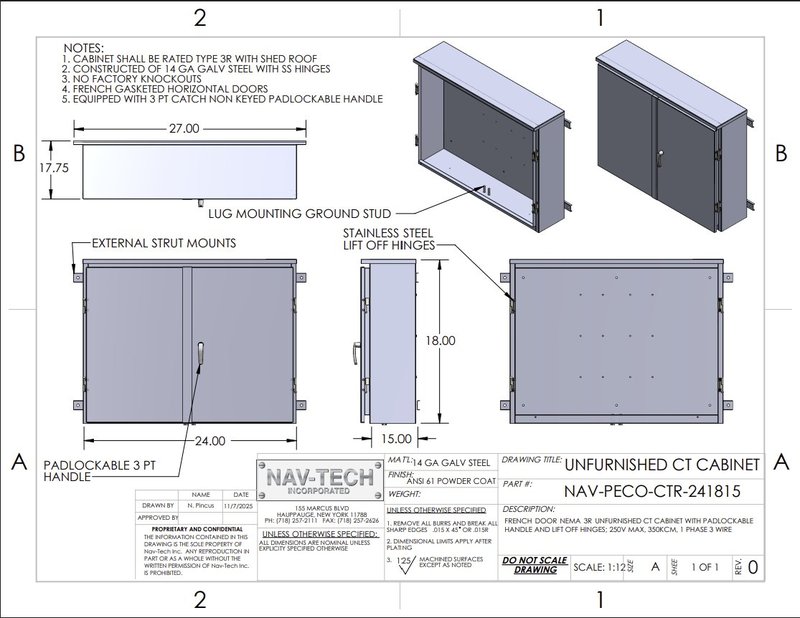

PECO CT Cabinet drawing
View This Spec Sheet ↗
Request a Quote
Quantity

Include a model number if you have one, or tell us the amperage, enclosure, and configuration — our sales team will confirm the approved build.

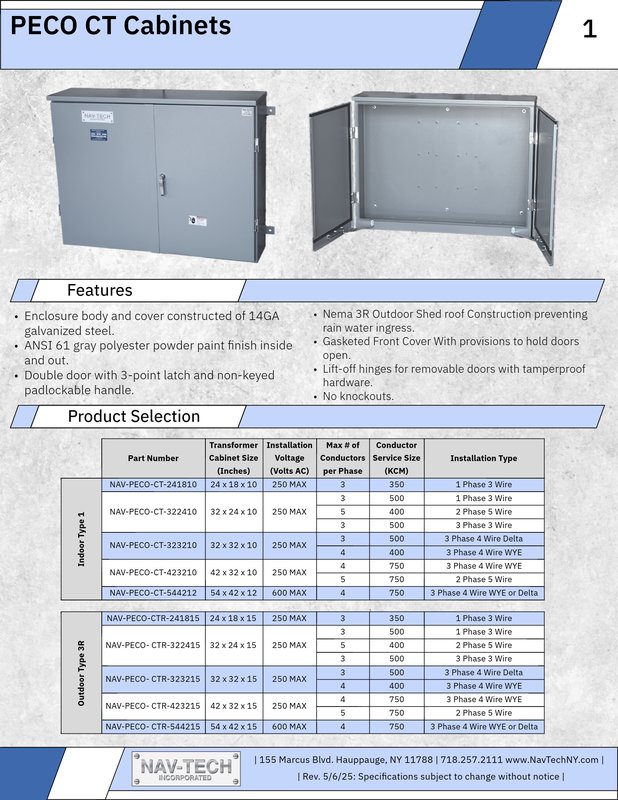

View All Spec Sheets

Nav-Tech CT Cabinets approved for PECO are utility-approved current-transformer cabinets built to PECO's current spec sheets. Enclosures are galvanized steel with an ANSI 61 gray powder-coat finish, available in NEMA 1 indoor and NEMA 3R outdoor constructions. Custom sizes, amperages, and configurations are available on request — add your requirements to the quote and our engineers will confirm the approved build.

Features

Enclosure body and cover constructed of galvanized steel
ANSI 61 gray polyester powder-coat finish, inside and out
Double door with 3-point latch and padlockable handle
NEMA 3R outdoor shed-roof construction (indoor NEMA 1 available)
Gasketed front cover with lift-off hinges, factory installed
Plywood backplate factory installed
Silver-plated copper bus where applicable (98% conductivity)
UL Listed and built to the utility's approved specifications

Frequently Asked Questions

Are these approved by PECO?
Yes — every drawing here is built to PECO's current, approved spec sheet. Send us your requirements on a quote and we'll confirm the exact approved configuration for your job.
Can I get a custom size or configuration?
Yes. Add the amperage, dimensions, overhead/underground entry, or any special requirement in the notes when you add to quote — we build to order and quote custom configurations routinely.
How do I request a quote?
Pick the model above, set a quantity, add any notes, and hit “Add to Quote.” Open the cart (top right) to review and send it, or reach us directly from the Contact page.
Where can I download the spec sheets?
The Spec Sheets tab above has every drawing for this utility as a downloadable PDF. All Nav-Tech spec sheets are also on the Specifications page.

Custom PECO CT Cabinets?

Need something not shown above? Nav-Tech engineers custom CT Cabinets to PECO's specifications.
