Copper Lineup

Con Edison Copper Detail Boxes

Con Edison-approved copper detail boxes — also known as EO-series service entrance boxes. Available in EO-48 through EO-92 sizes plus 348210 (72-inch) and 348211 (96-inch) configurations, in NEMA 1 indoor and NEMA 3R outdoor enclosures.

EO Boxes — NEMA 1 (Indoor)

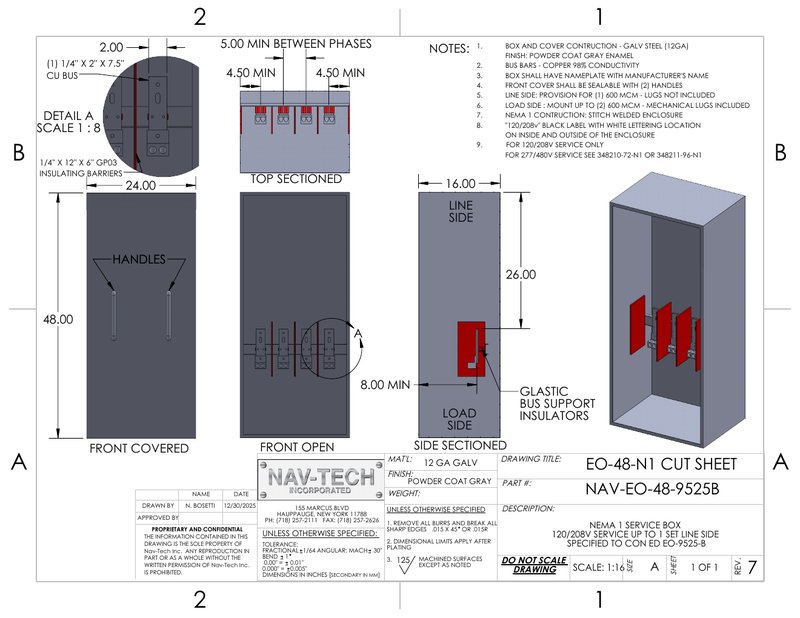

EO-48-N1 drawing

EO-48-N1

Spec Sheet

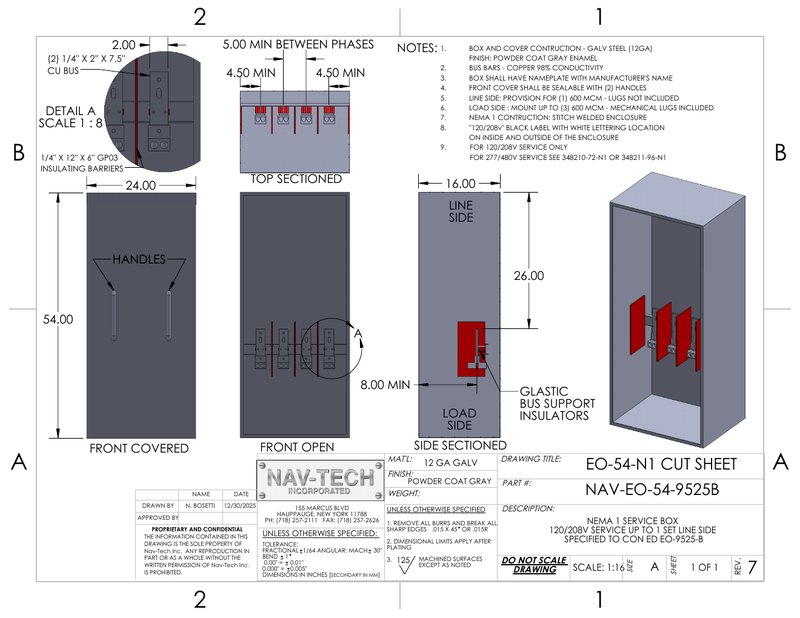

EO-54-N1 drawing

EO-54-N1

Spec Sheet
EO-68-N1 drawing

EO-68-N1

Spec Sheet

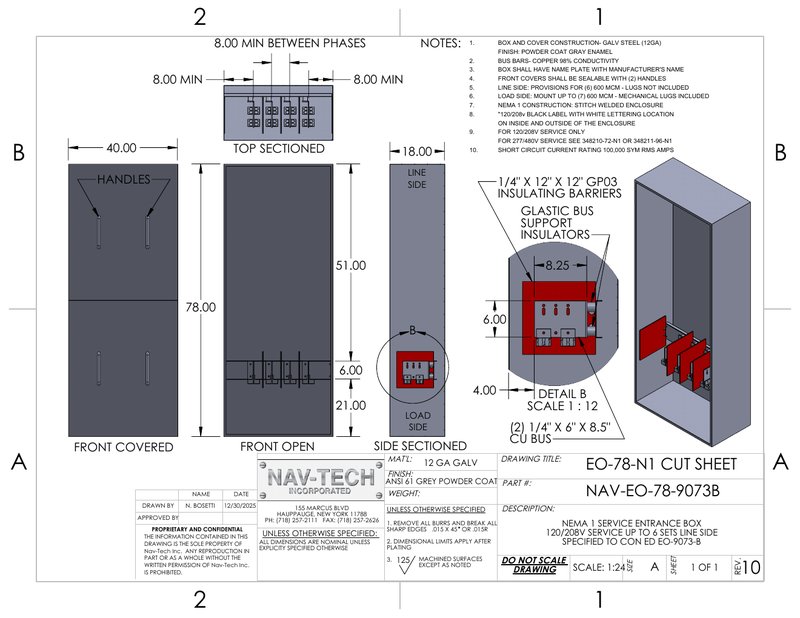

EO-78-N1 drawing

EO-78-N1

Spec Sheet
EO-84-N1 drawing

EO-84-N1

Spec Sheet
EO-92-N1 drawing

EO-92-N1

Spec Sheet

EO Boxes — NEMA 3R (Outdoor)

EO-48-N3R drawing

EO-48-N3R

Spec Sheet

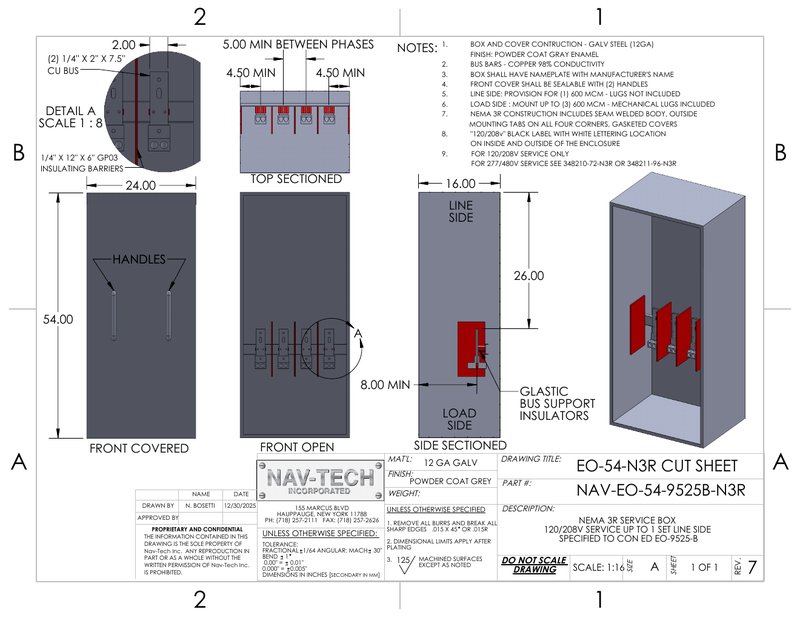

EO-54-N3R drawing

EO-54-N3R

Spec Sheet
EO-68-N3R drawing

EO-68-N3R

Spec Sheet
EO-78-N3R drawing

EO-78-N3R

Spec Sheet
EO-84-N3R drawing

EO-84-N3R

Spec Sheet

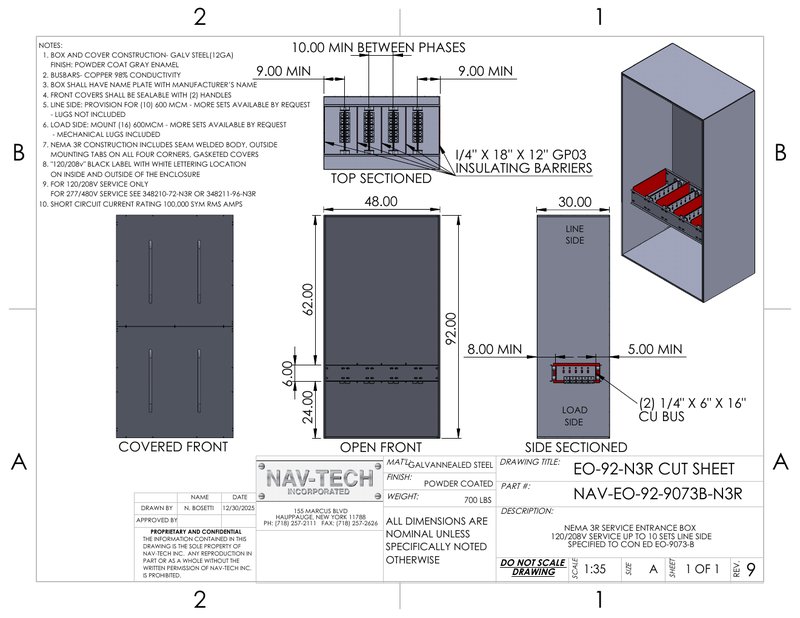

EO-92-N3R drawing

EO-92-N3R

Spec Sheet

348210 Series

348210-72-N1 drawing

348210-72-N1

Spec Sheet

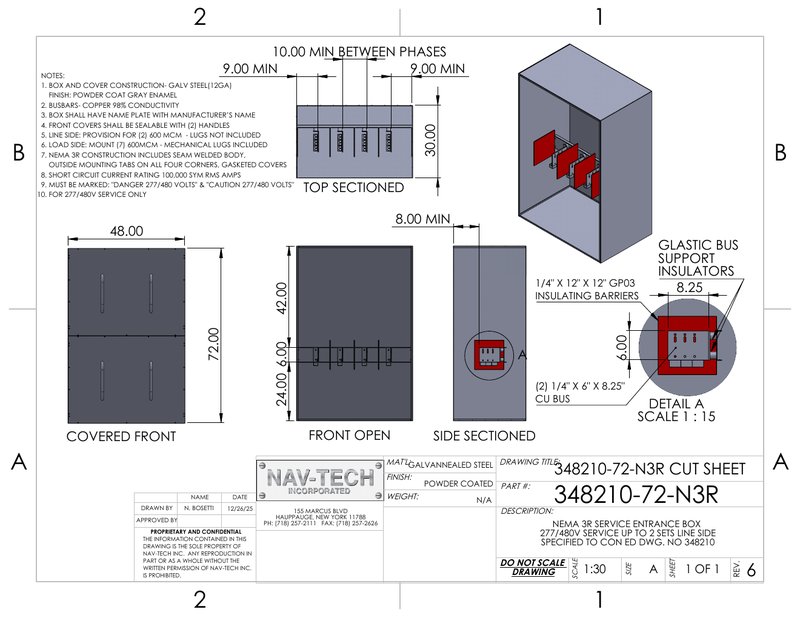

348210-72-N3R drawing

348210-72-N3R

Spec Sheet

348211 Series

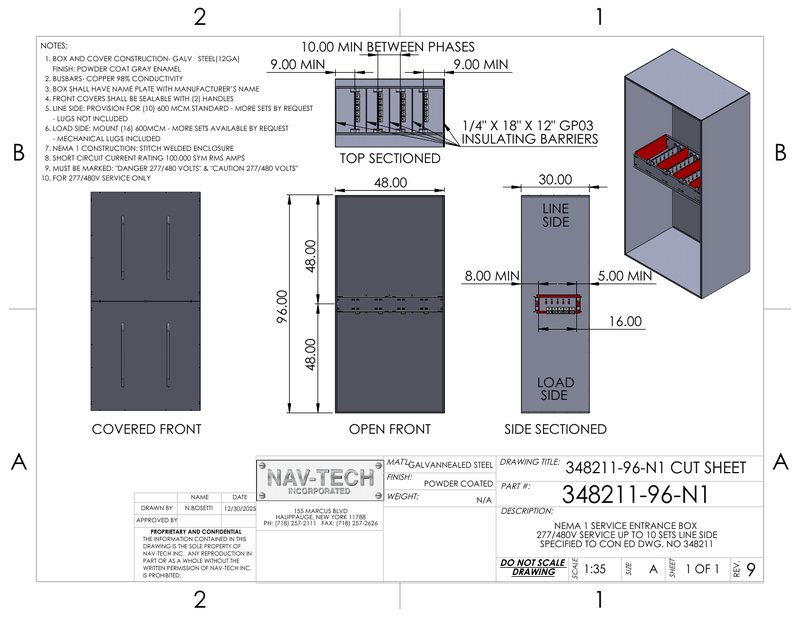

348211-96-N1 drawing

348211-96-N1

Spec Sheet

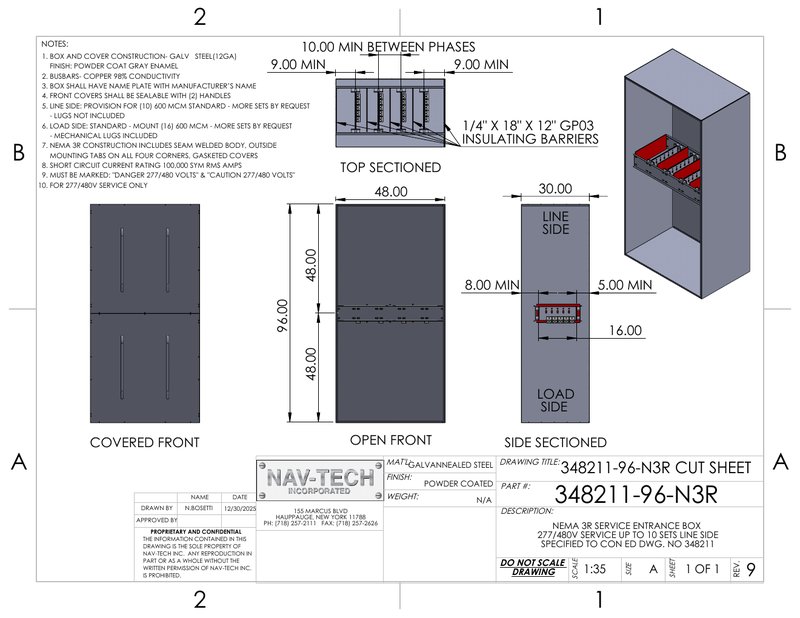

348211-96-N3R drawing

348211-96-N3R

Spec Sheet
