Trans-Sockets

Trans-Sockets by Product

Nav-Tech general-purpose trans-socket cabinet catalog and spec sheets — TS-RT12CT and standard configurations available across multiple utility territories.

Trans-Sockets Catalog

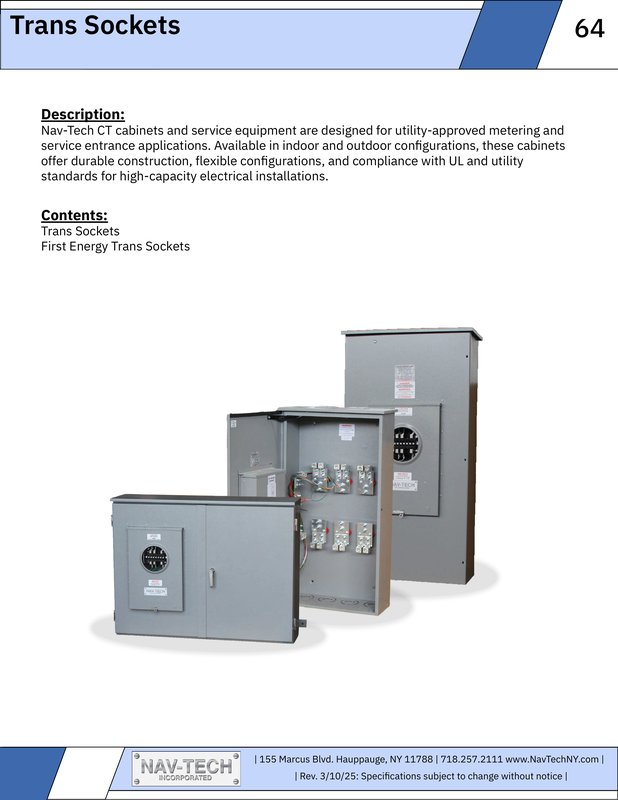

Trans Sockets Catalog drawing

Trans Sockets Catalog

Catalog

General Trans-Socket Specs

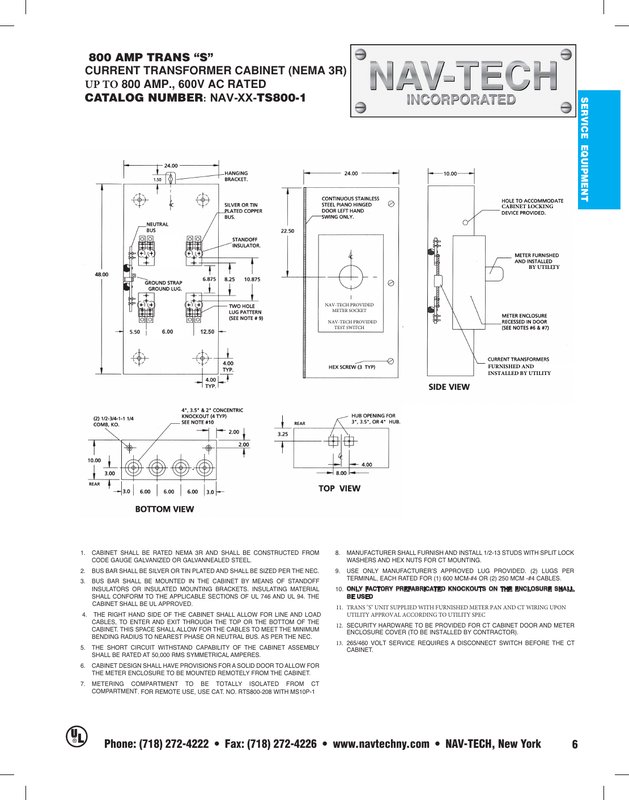

General Utility NAV-XX-TS800-1 drawing

General Utility NAV-XX-TS800-1

Spec Sheet

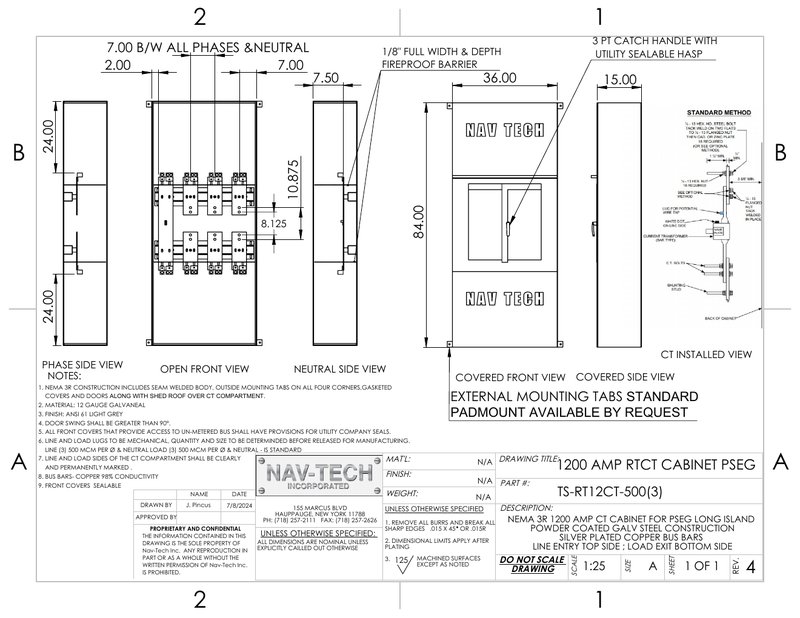

TS-RT12CT-500(3) drawing

TS-RT12CT-500(3)

Spec Sheet

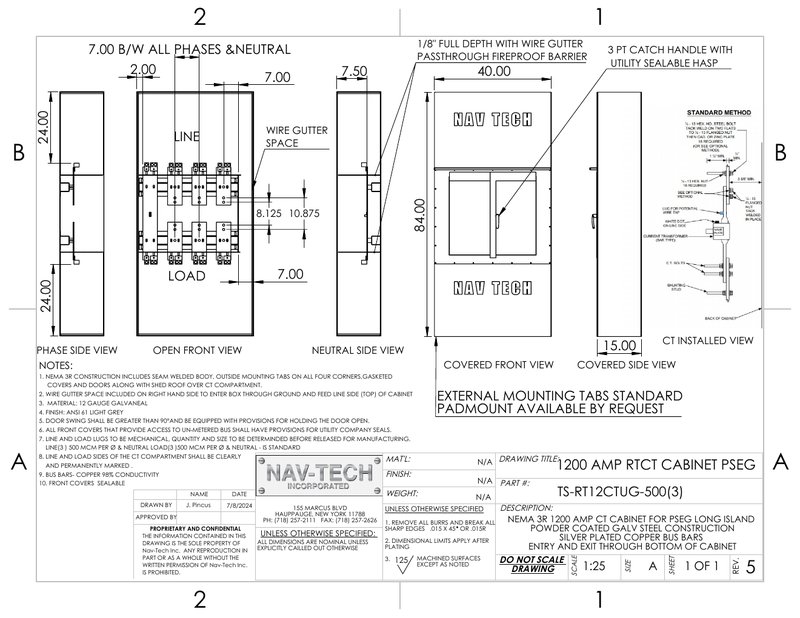

TS-RT12CTUG-500(3) drawing

TS-RT12CTUG-500(3)

Spec Sheet

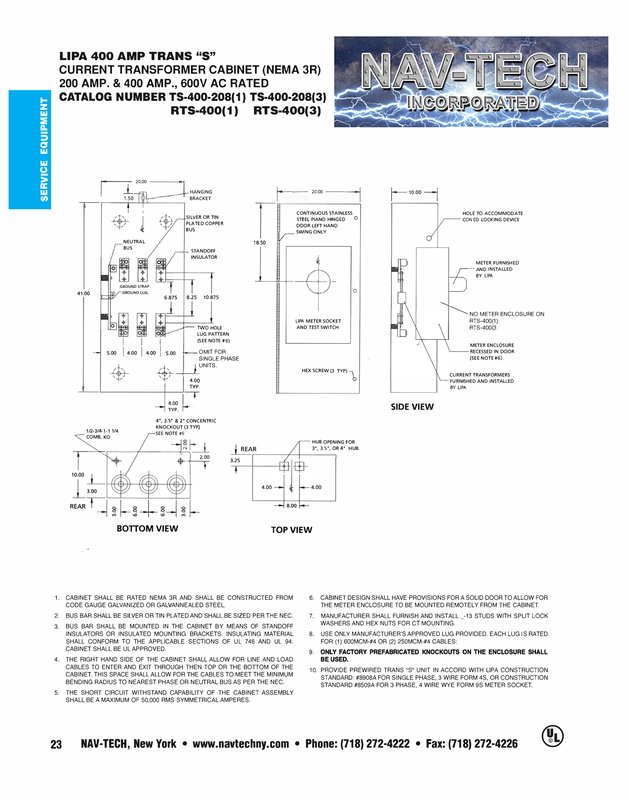

TS-400-208 drawing

TS-400-208

Spec Sheet

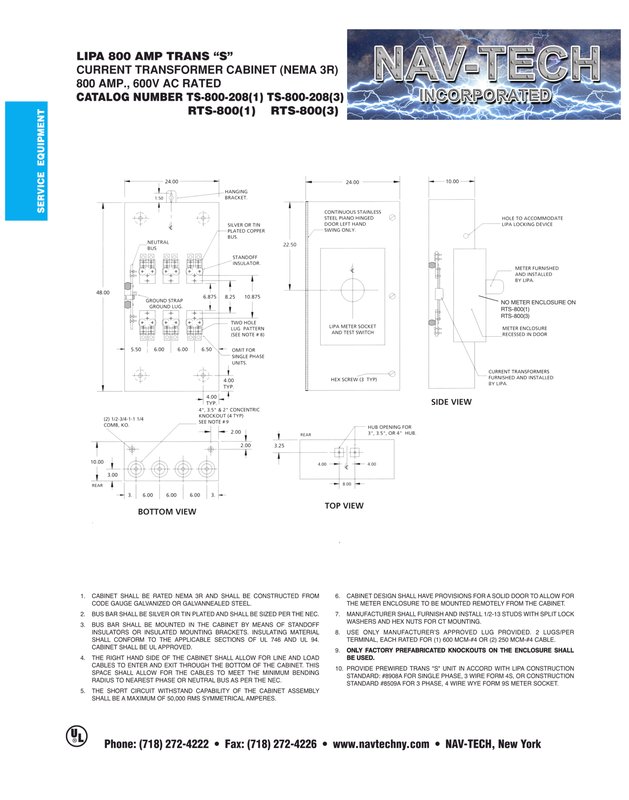

TS-800-208 drawing

TS-800-208

Spec Sheet
