Disconnect Switches

Heavy Duty Disconnect / Bolted Pressure Switch

Nav-Tech enclosed Bolted Pressure Switches (BPS) — heavy duty disconnect switches in NEMA 1 and NEMA 3R, 400A to 4000A. UL listed.

Overview

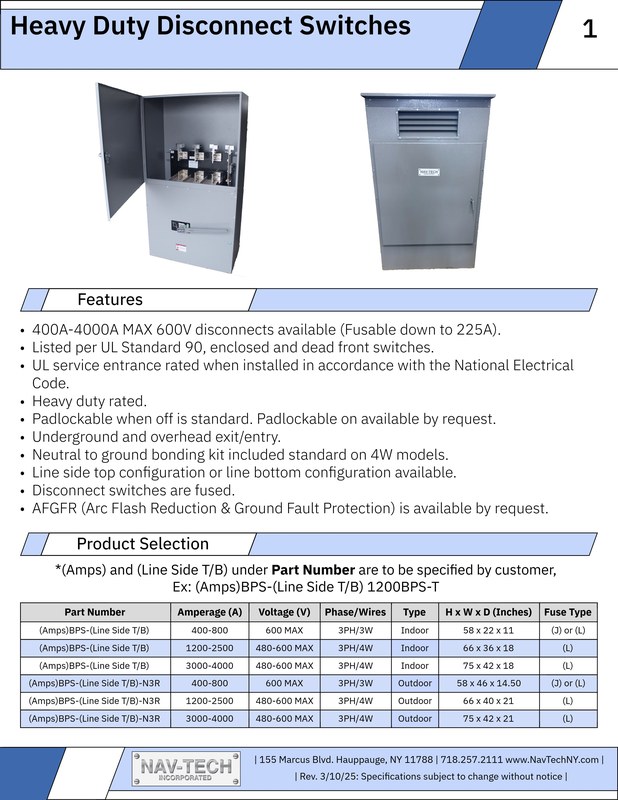

Heavy Duty Disconnect Switches drawing

Heavy Duty Disconnect Switches

Flyer

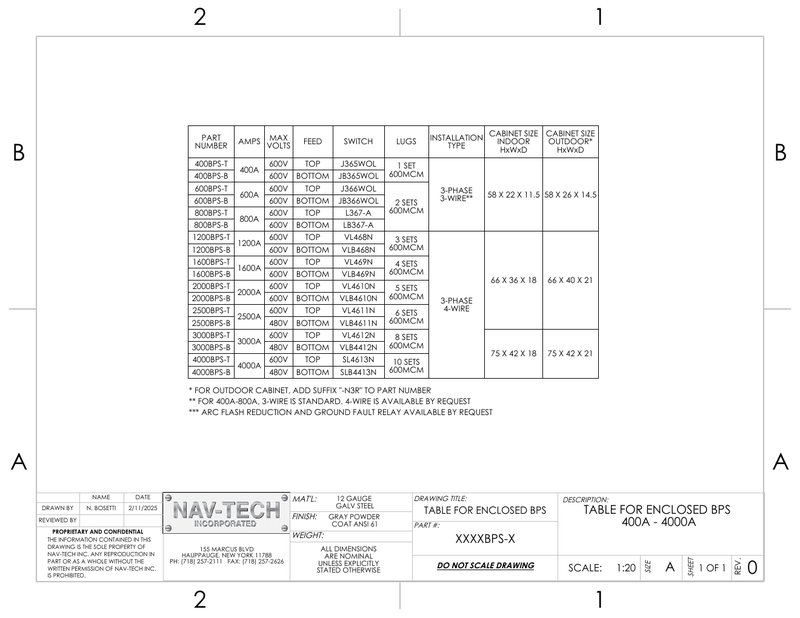

Chart For Enclosed BPS drawing

Chart For Enclosed BPS

Spec Sheet

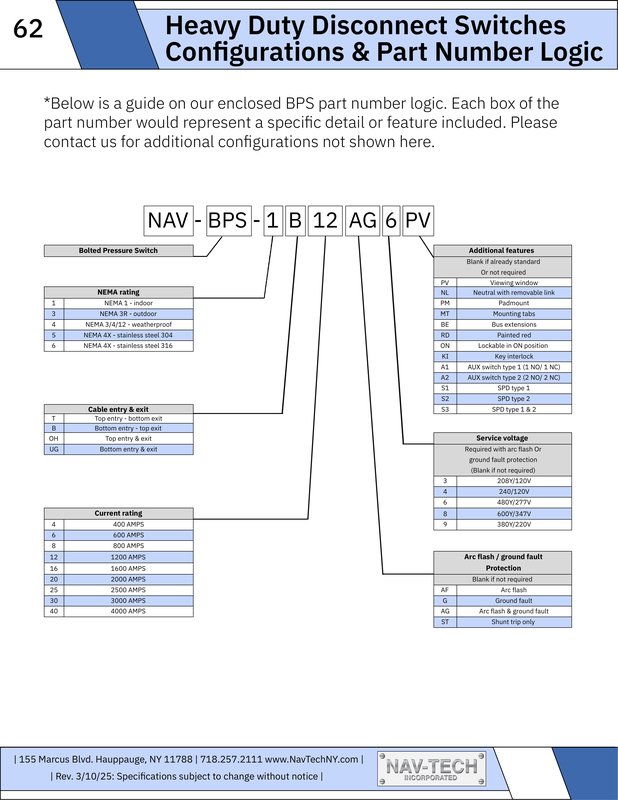

Heavy Duty Disconnect Switches Configurations Part Number Logic drawing

Heavy Duty Disconnect Switches Configurations Part Number Logic

Flyer

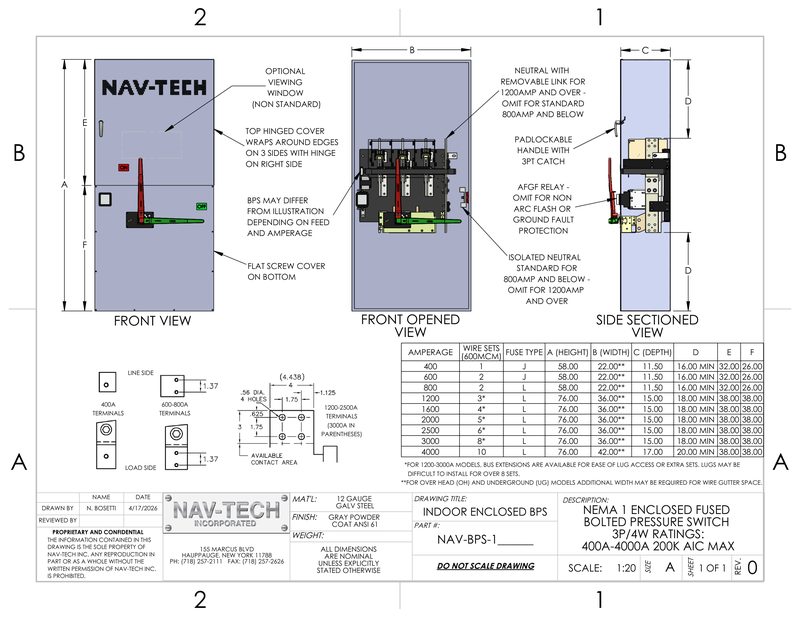

NEMA 1 Enclosed BPS

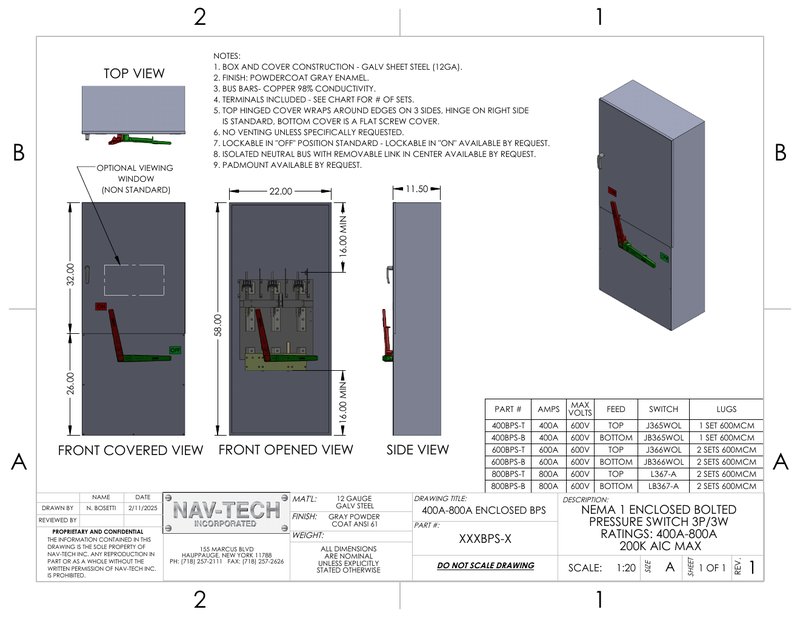

N1 400A-800A BPS drawing

N1 400A-800A BPS

Spec Sheet

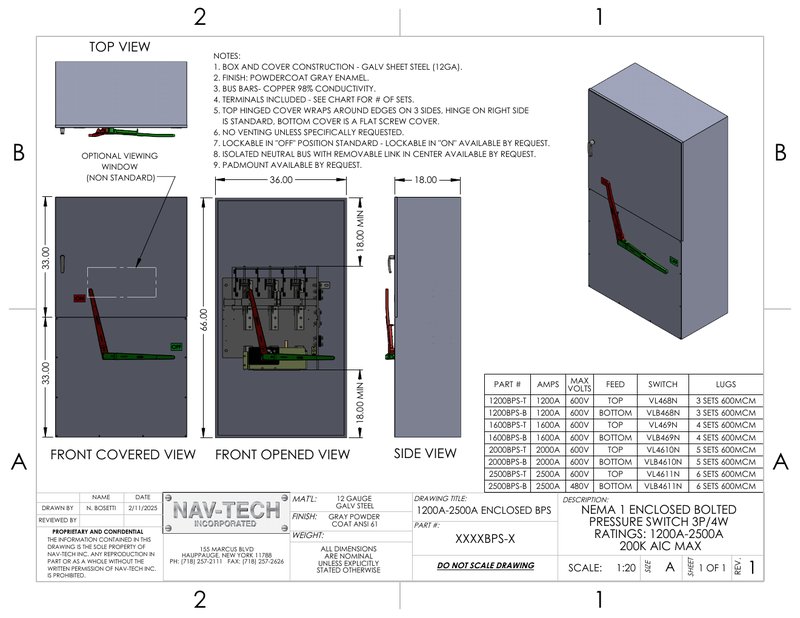

N1 1200A-2500A BPS drawing

N1 1200A-2500A BPS

Spec Sheet

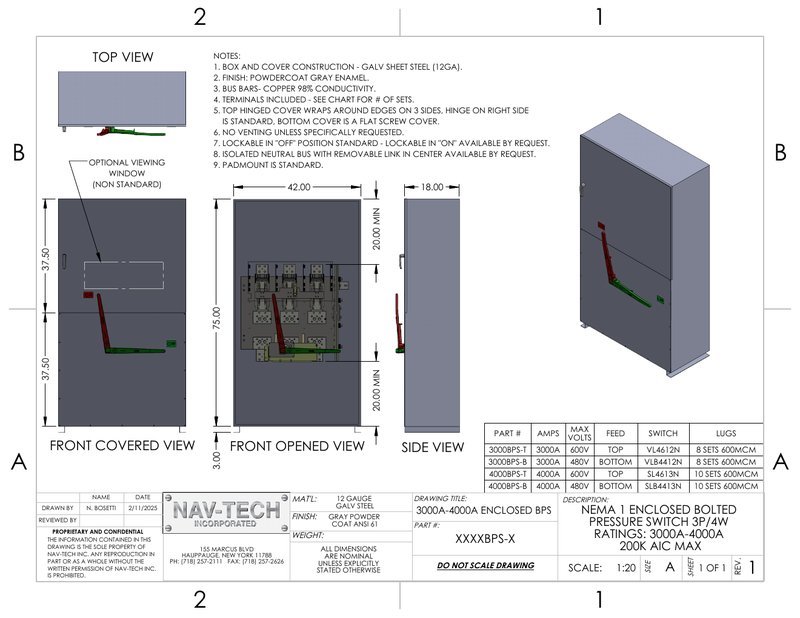

N1 3000A-4000A BPS drawing

N1 3000A-4000A BPS

Spec Sheet

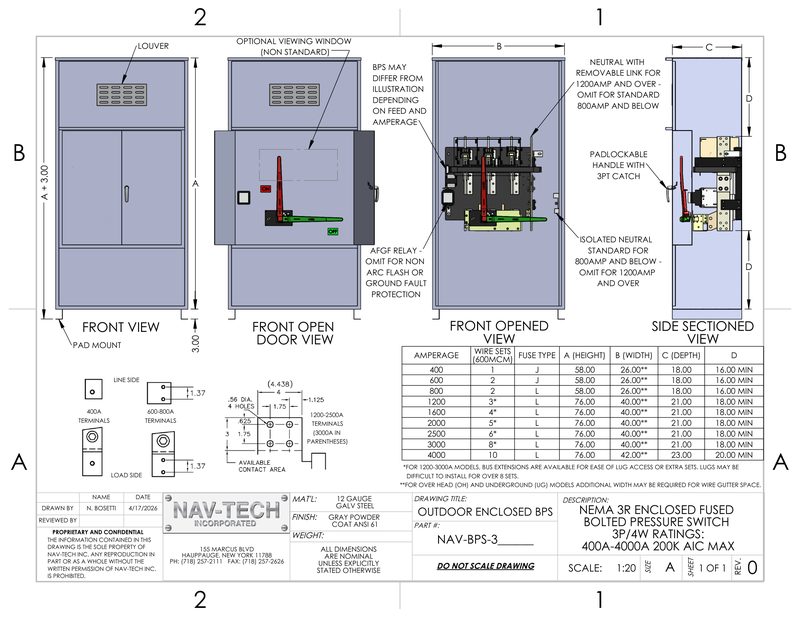

NEMA 3R Enclosed BPS

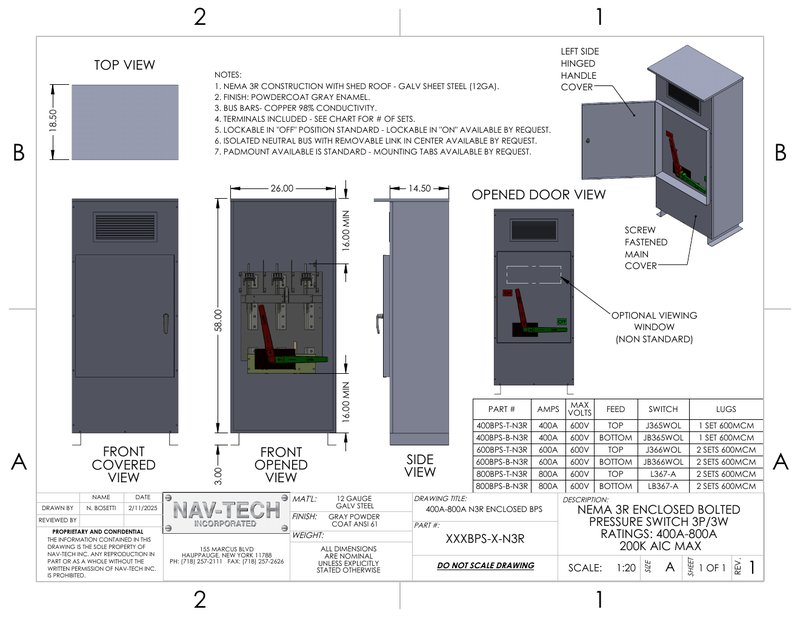

N3R 400A-800A BPS drawing

N3R 400A-800A BPS

Spec Sheet

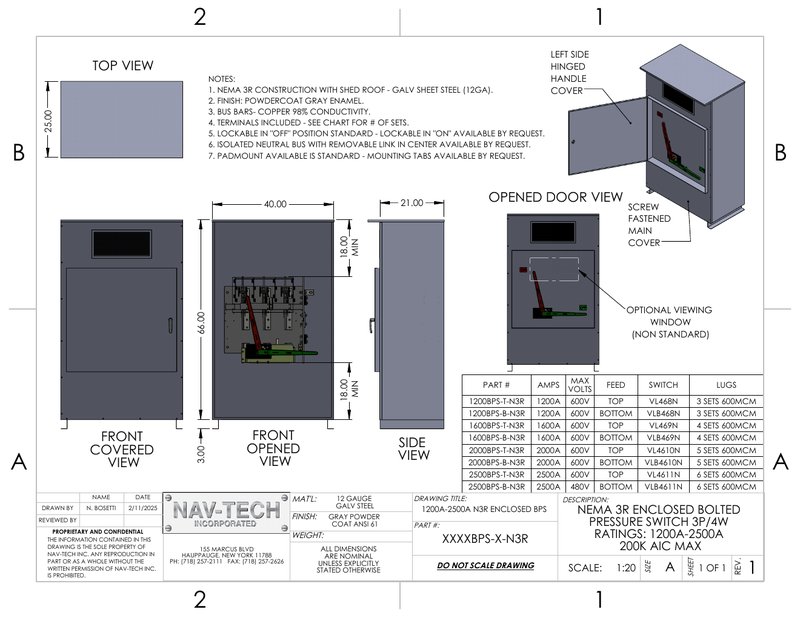

N3R 1200A-2500A BPS drawing

N3R 1200A-2500A BPS

Spec Sheet

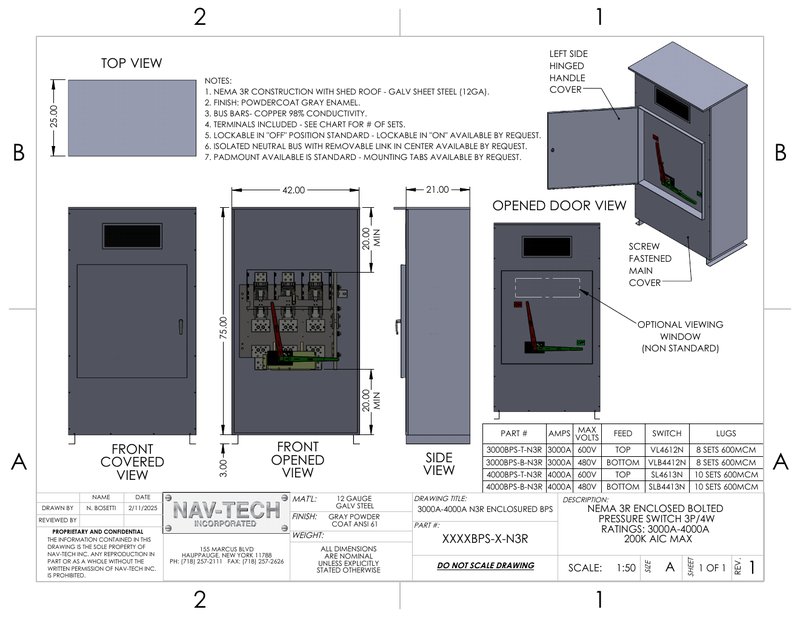

N3R 3000A-4000A BPS drawing

N3R 3000A-4000A BPS

Spec Sheet
