PSEG Long Island

PSEG Long Island Approved Trans Socket / Disconnect Combo

Nav-Tech Trans Socket / Disconnect Combo approved by PSEG Long Island. Download spec sheets below or contact us for custom specifications.

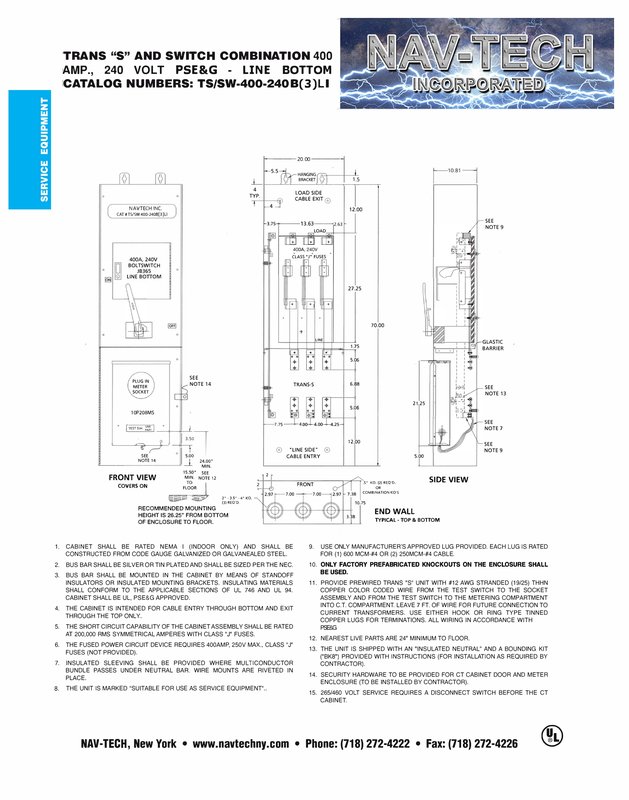

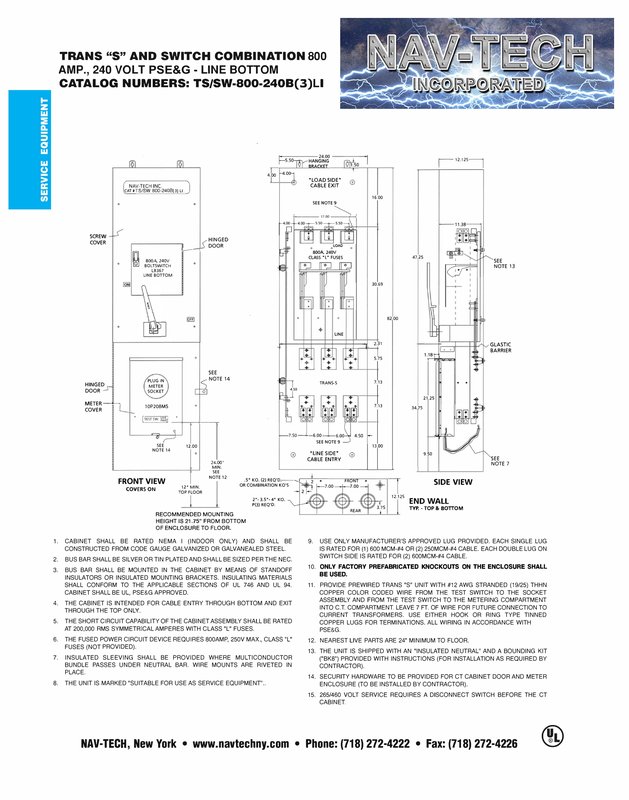

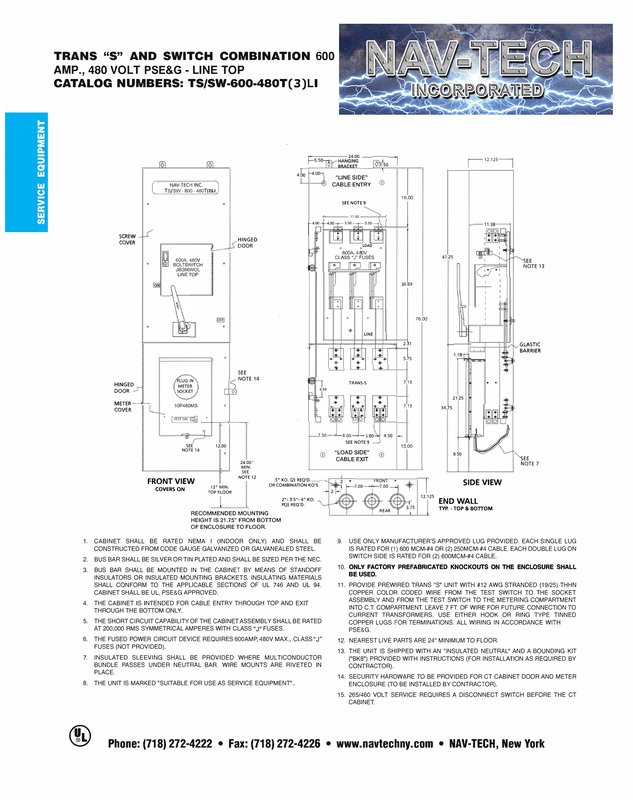

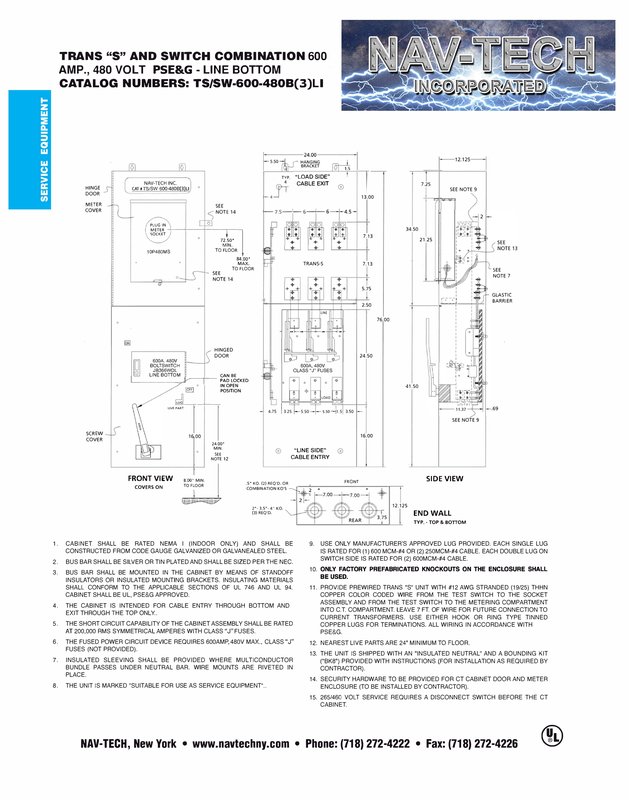

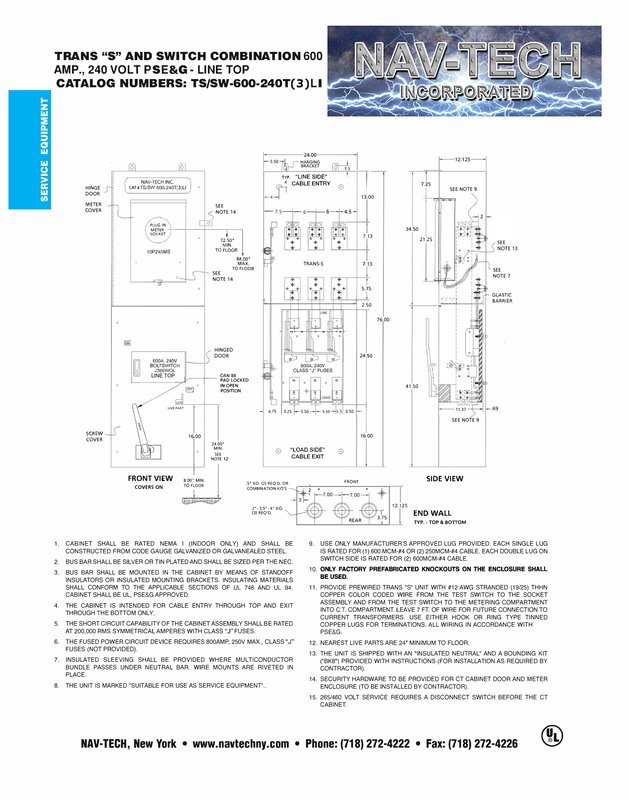

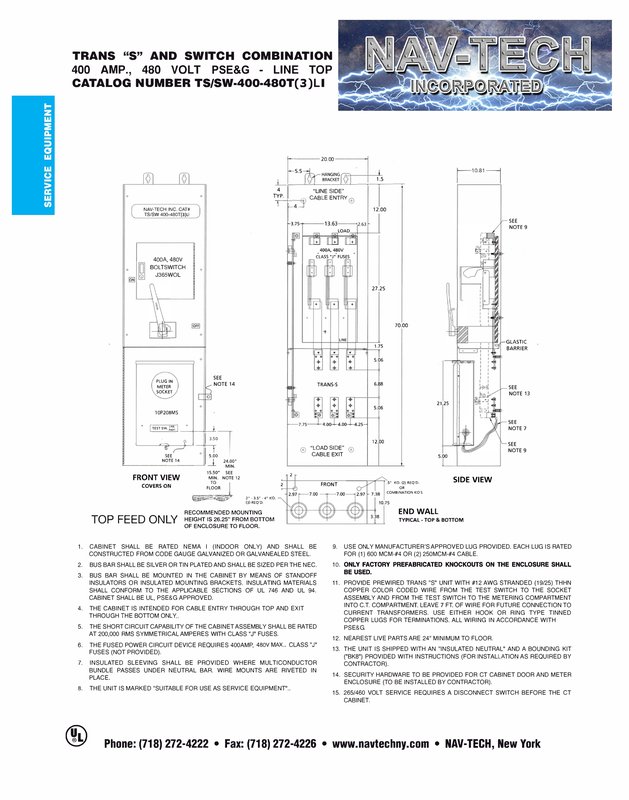

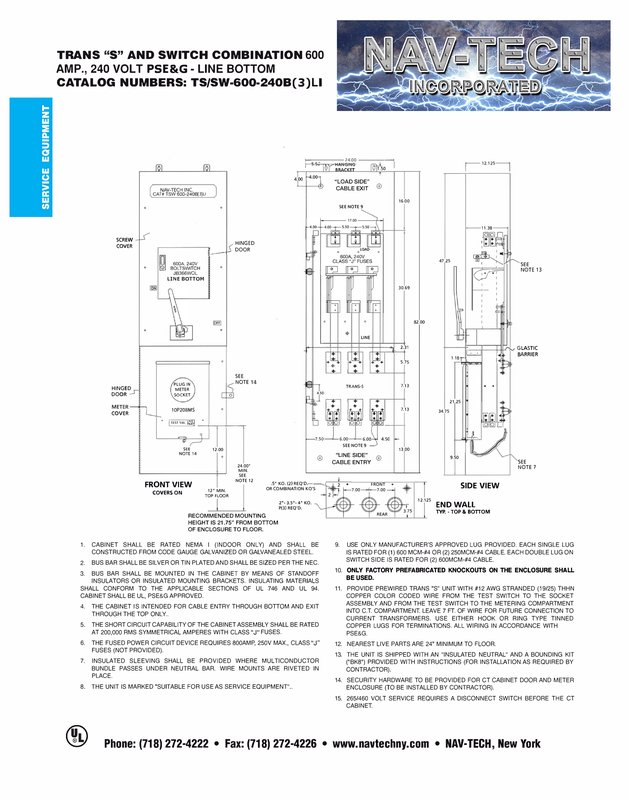

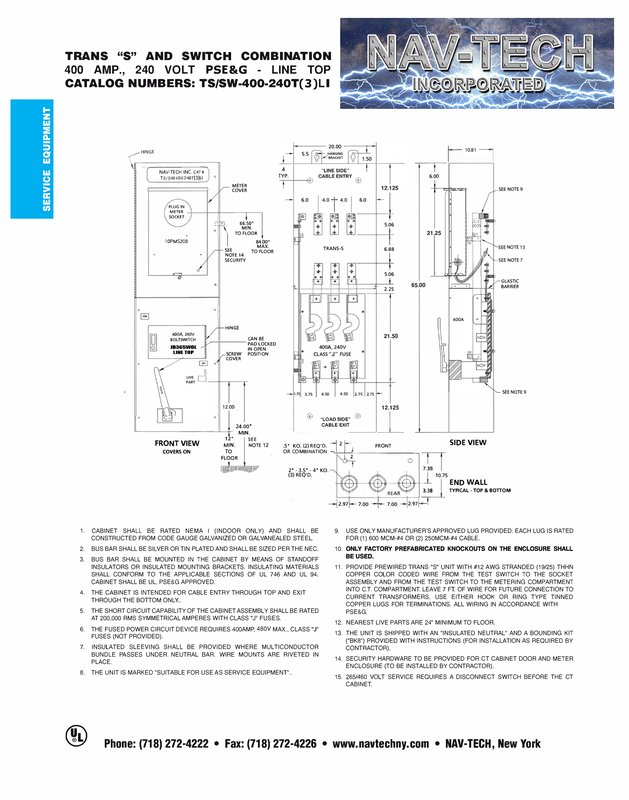

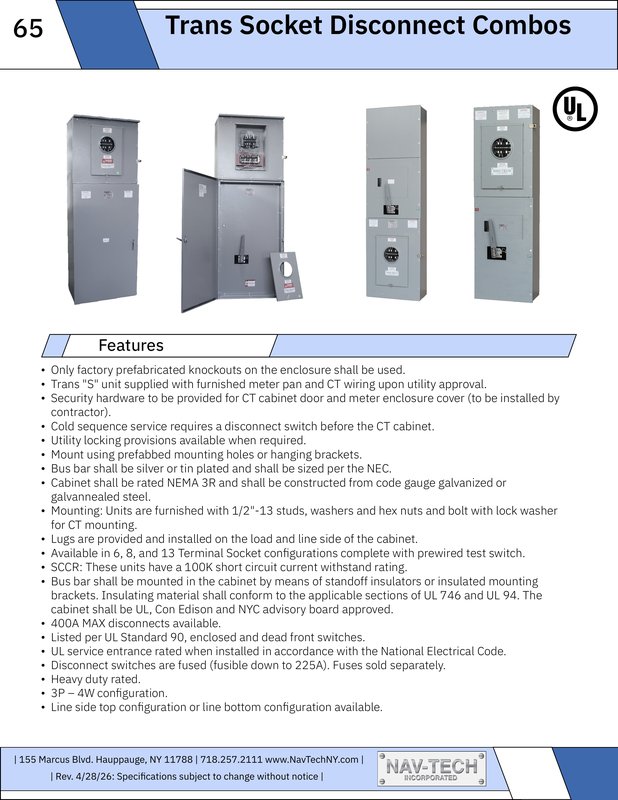

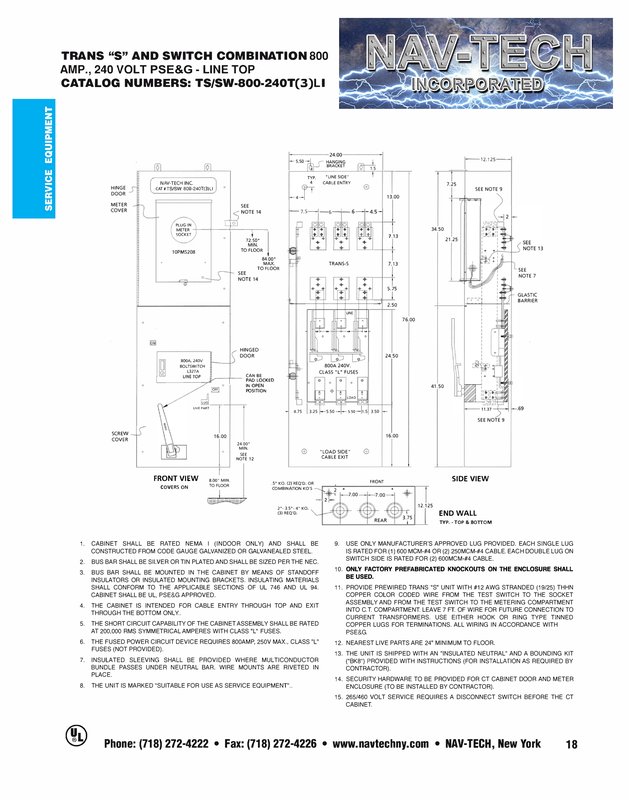

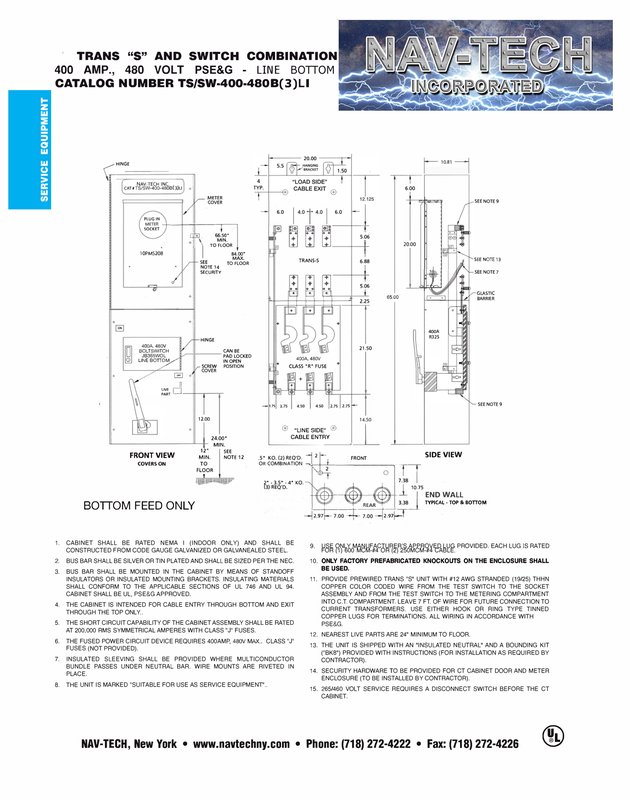

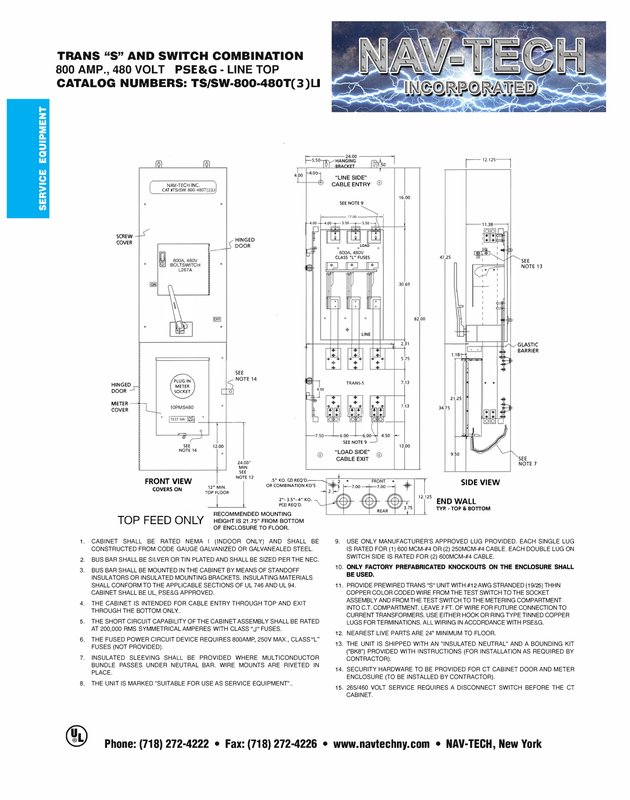

PSEG Long Island Trans Socket / Disconnect Combo drawing
View This Spec Sheet ↗
Configure & Request a Quote
Amperage
Model
Quantity

Don’t see the exact configuration you need? Add it in the notes above — we’ll quote it as a custom order.

View All Spec Sheets

Nav-Tech combination transformer-socket and service-disconnect units approved for PSEG Long Island are built to PSEG Long Island’s current, approved spec sheets. Enclosures are galvanized steel with an ANSI 61 gray polyester powder-coat finish, available in NEMA 1 indoor and NEMA 3R outdoor constructions. Custom sizes, amperages, and configurations are available on request — add your requirements to the quote and our engineers will confirm the approved build.

Features

Combined metering socket and service disconnect in one enclosure
Utility-approved construction
Galvanized steel, ANSI 61 gray powder-coat finish
NEMA 3R outdoor rated
Single- and three-phase configurations
UL Listed and built to the utility's approved specifications
Underground or overhead entry
Custom amperages and configurations on request

Frequently Asked Questions

Are these approved by PSEG Long Island?
Yes — every drawing here is built to PSEG Long Island’s current, approved spec sheet. Send us your requirements on a quote and we’ll confirm the exact approved configuration for your job.
Can I get a custom size or configuration?
Yes. Add the amperage, dimensions, overhead/underground entry, or any special requirement in the notes when you add to quote — we build to order and quote custom configurations routinely.
How do I request a quote?
Pick the model above, set a quantity, add any notes, and hit “Add to Quote.” Open the cart (top right) to review and send it, or reach us directly from the Contact page.
Where can I download the spec sheets?
The Spec Sheets tab above has every drawing here as a downloadable PDF. All Nav-Tech spec sheets are also on the Specifications page.

Custom PSEG LI Trans Socket / Disconnect Combo?

Need something not shown above? Nav-Tech engineers custom Trans Socket / Disconnect Combo to PSEG Long Island's specifications.
