PSEG Long Island

PSEG Long Island Approved Meters

Nav-Tech Meters approved by PSEG Long Island. Download spec sheets below or contact us for custom specifications.

Nav-Tech meter socket
Request a Quote
Quantity

Include a model number if you have one, or tell us the amperage, enclosure, and configuration — our sales team will confirm the approved build.

View All Spec Sheets

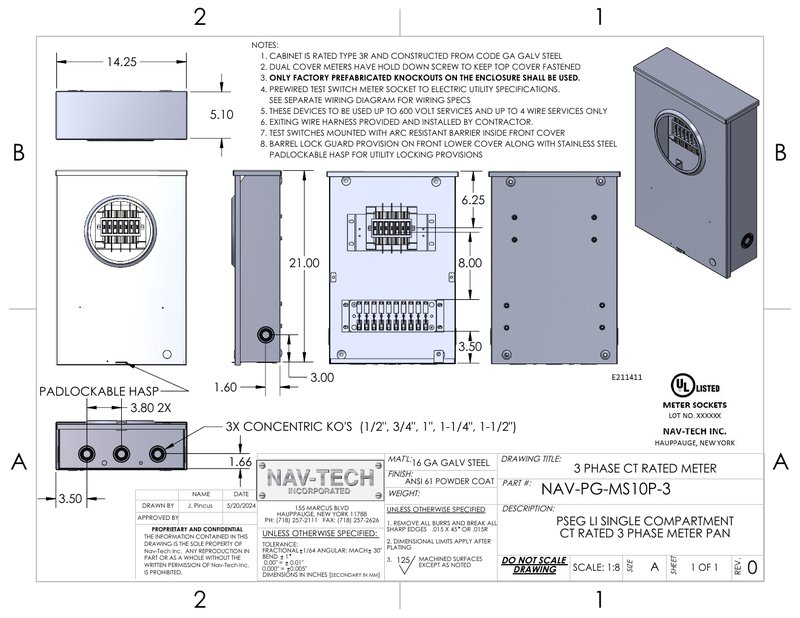

Nav-Tech self-contained and transformer-rated meter sockets approved for PSEG Long Island are built to PSEG Long Island’s current, approved spec sheets. Enclosures are galvanized steel with an ANSI 61 gray polyester powder-coat finish, available in NEMA 1 indoor and NEMA 3R outdoor constructions. Custom sizes, amperages, and configurations are available on request — add your requirements to the quote and our engineers will confirm the approved build.

Features

Ring or ringless meter socket styles per utility spec
4/5/7-jaw configurations, 100A–320A
Lever or plunger bypass available
Single- and three-phase construction
Galvanized steel, ANSI 61 gray powder-coat finish
NEMA 3R outdoor rated
UL Listed and built to the utility's approved specifications
Custom jaw and amperage configurations on request

Frequently Asked Questions

Are these approved by PSEG Long Island?
Yes — every drawing here is built to PSEG Long Island’s current, approved spec sheet. Send us your requirements on a quote and we’ll confirm the exact approved configuration for your job.
Can I get a custom size or configuration?
Yes. Add the amperage, dimensions, overhead/underground entry, or any special requirement in the notes when you add to quote — we build to order and quote custom configurations routinely.
How do I request a quote?
Pick the model above, set a quantity, add any notes, and hit “Add to Quote.” Open the cart (top right) to review and send it, or reach us directly from the Contact page.
Where can I download the spec sheets?
The Spec Sheets tab above has every drawing here as a downloadable PDF. All Nav-Tech spec sheets are also on the Specifications page.

Custom PSEG LI Meters?

Need something not shown above? Nav-Tech engineers custom Meters to PSEG Long Island's specifications.
