Meters

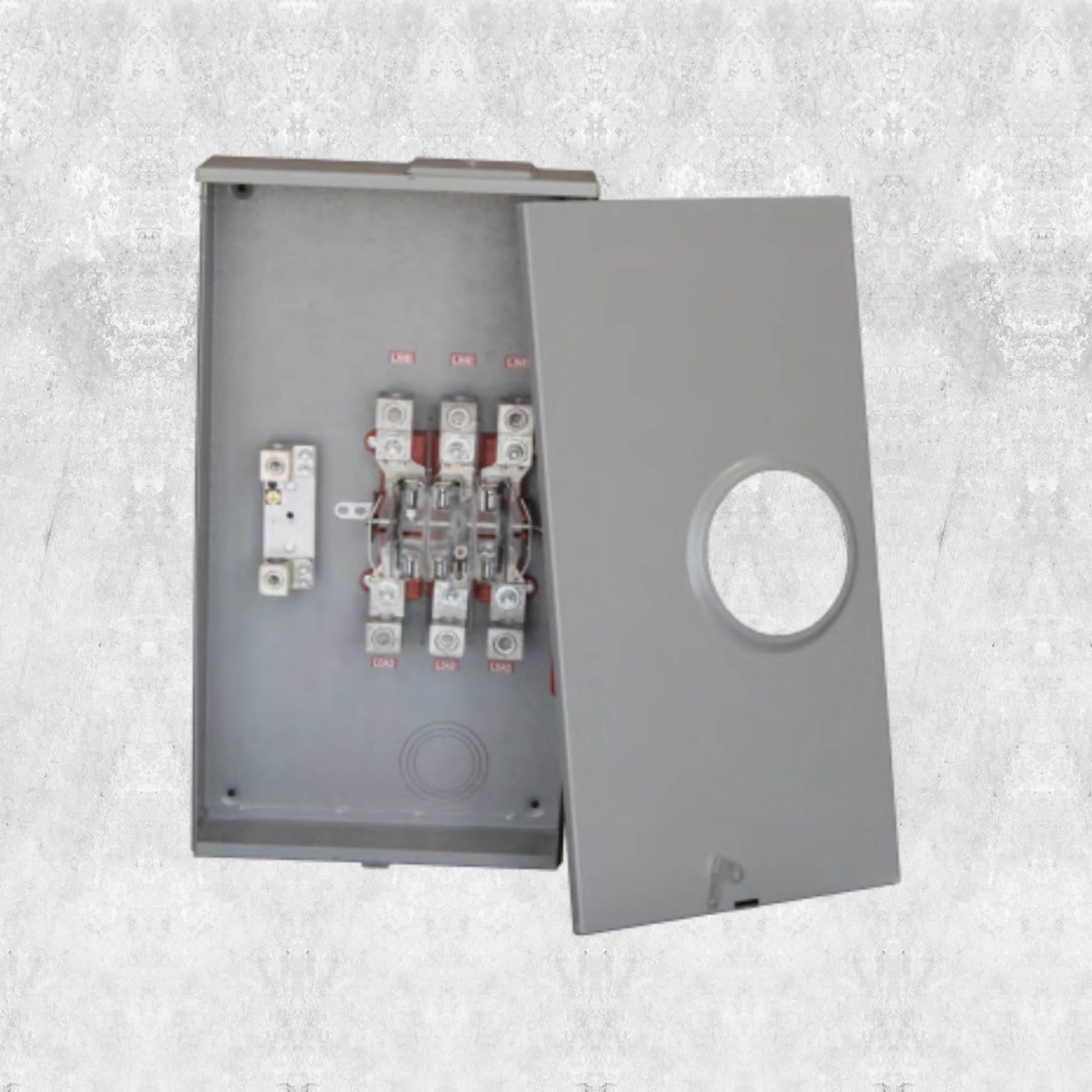

Lever Bypass Meter Sockets

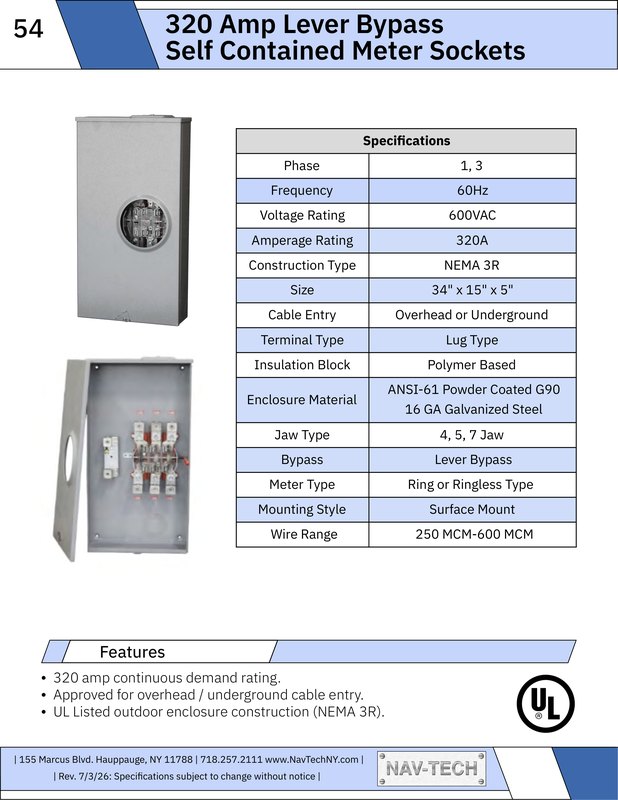

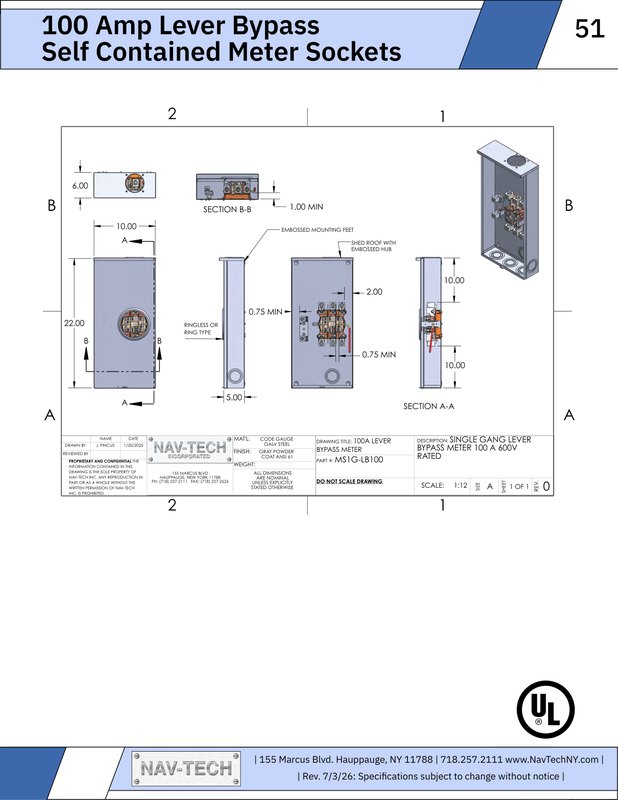

Nav-Tech lever bypass self contained meter sockets — 100, 200, and 320 amp, ringless or ring type, NEMA 3R outdoor.

Lever Bypass Meter Sockets
Request a Quote
Quantity

Include a model number if you have one, or tell us the amperage, enclosure, and configuration — our sales team will confirm the approved build.

View All Spec Sheets

Nav-Tech self-contained and transformer-rated meter sockets are built for commercial, industrial, and utility service-entrance applications. Construction is galvanized steel with an ANSI 61 gray polyester powder-coat finish, UL Listed where applicable. Standard and custom sizes and configurations are available — add your requirements to the quote and our engineers will confirm the build.

Features

Ring or ringless meter socket styles per utility spec
4/5/7-jaw configurations, 100A–320A
Lever or plunger bypass available
Single- and three-phase construction
Galvanized steel, ANSI 61 gray powder-coat finish
NEMA 3R outdoor rated
UL Listed and built to the utility's approved specifications
Custom jaw and amperage configurations on request

Frequently Asked Questions

What applications are these built for?
These are built for commercial, industrial, and utility service-entrance applications. Send us your requirements on a quote and our engineers will confirm the right configuration.
Can I get a custom size or configuration?
Yes. Add the amperage, dimensions, overhead/underground entry, or any special requirement in the notes when you add to quote — we build to order and quote custom configurations routinely.
How do I request a quote?
Pick the model above, set a quantity, add any notes, and hit “Add to Quote.” Open the cart (top right) to review and send it, or reach us directly from the Contact page.
Where can I download the spec sheets?
The Spec Sheets tab above has every drawing here as a downloadable PDF. All Nav-Tech spec sheets are also on the Specifications page.
