Nav-Tech CT Cabinets approved by Florida Power & Light. Download spec sheets below or contact us for custom specifications.
Include a model number if you have one, or tell us the amperage, enclosure, and configuration — our sales team will confirm the approved build.
Added ✓ — open the cart (top right) to review or send.Nav-Tech CT Cabinets approved for Florida Power & Light are utility-approved current-transformer cabinets built to Florida Power & Light's current spec sheets. Enclosures are galvanized steel with an ANSI 61 gray powder-coat finish, available in NEMA 1 indoor and NEMA 3R outdoor constructions. Custom sizes, amperages, and configurations are available on request — add your requirements to the quote and our engineers will confirm the approved build.
| Part Number | H × W × D (Inches) | Installation Type | Voltage (MAX VAC) | Max Conductors Per Phase |
|---|---|---|---|---|

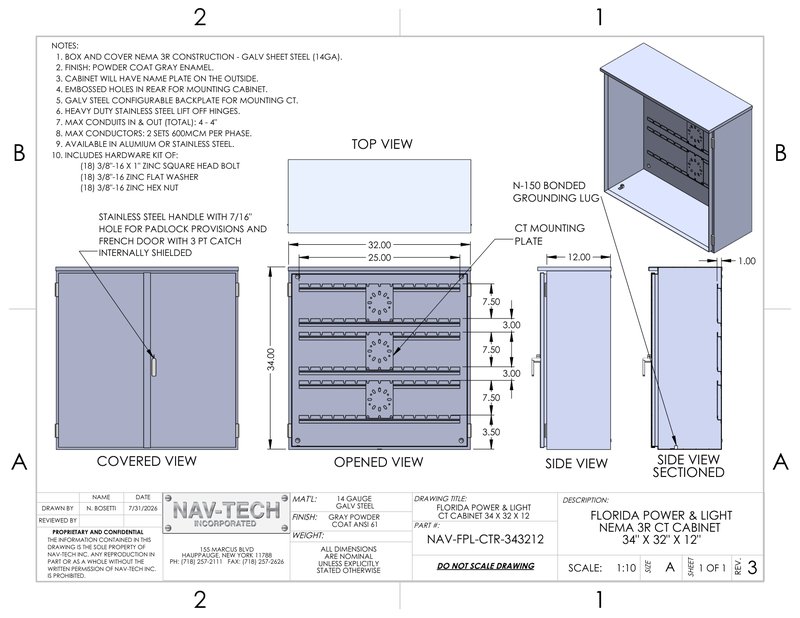

| NAV-FPL-CTR-343212 | 34 × 32 × 12 | 3-Phase 4-Wire | 600 | 2 Sets 600 MCM |

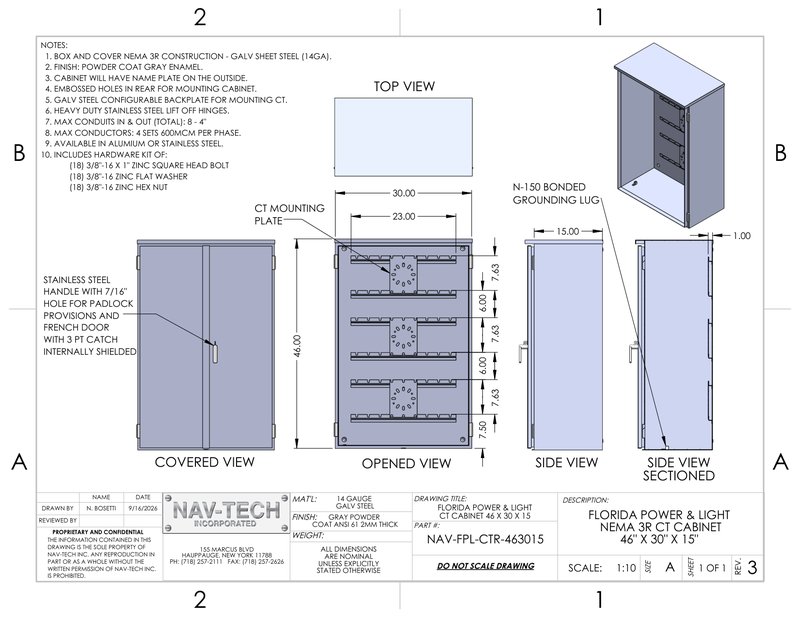

| NAV-FPL-CTR-463015 | 46 × 30 × 15 | 3-Phase 4-Wire | 600 | 4 Sets 600 MCM |
| NAV-FPL-CTR-544215 | 54 × 42 × 15 | 3-Phase 4-Wire | 600 | 4 Sets 600 MCM |

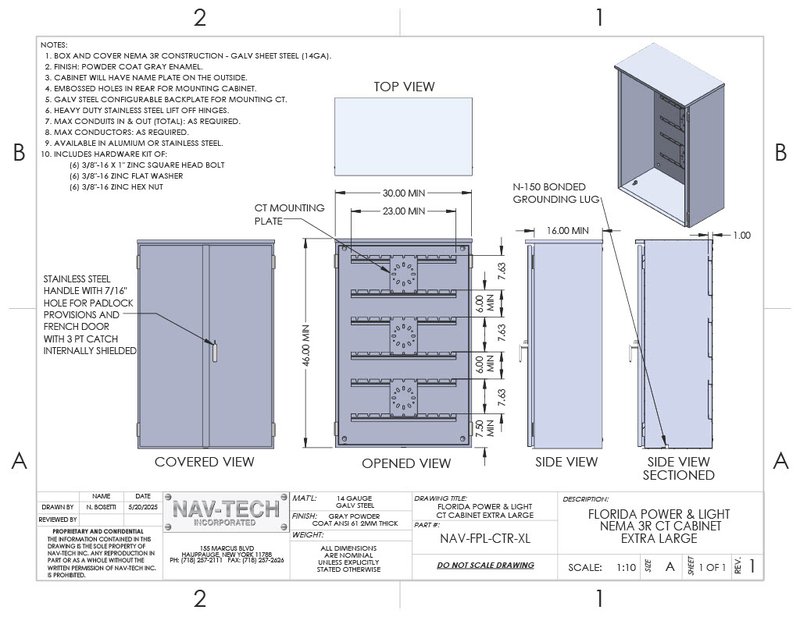

| NAV-FPL-CTR-XL | 46 × 30 × 16 (min) | 3-Phase 4-Wire | 600 | As Required |
| Utility | Florida Power & Light |
|---|---|
| Product | CT Cabinet |
| Material | 14GA galvanized sheet steel |
| Finish | Powdercoat gray enamel |
| Enclosure | NEMA 3R |
| Rating | 800A or 1200A, 600VAC MAX 3ø/4W — 50kA SCCR |
| Hardware | Grade 5; wire connection torque 500 in-lb, CT landing bolt torque 660 in-lb |
| Listing / Approval | UL 414 listed; built to Florida Power & Light's approved spec |
| Custom | Custom sizes & configurations available on request |

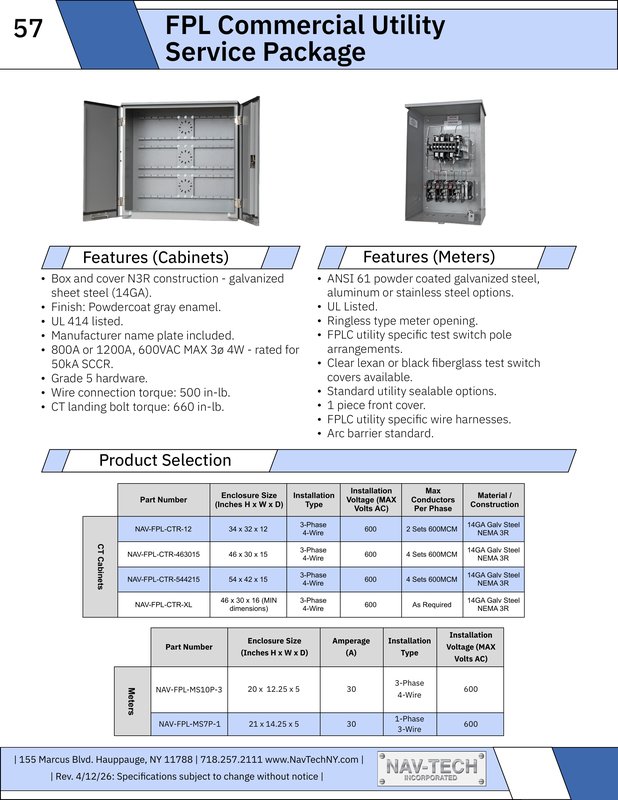

Full dimensioned drawings are in the Spec Sheets tab. Bus width, bus leaves, and line/load sets are shown on each drawing.
All Nav-Tech spec sheets and catalogs are also on the Specifications page.
Need something not shown above? Nav-Tech engineers custom CT Cabinets to Florida Power & Light's specifications.
